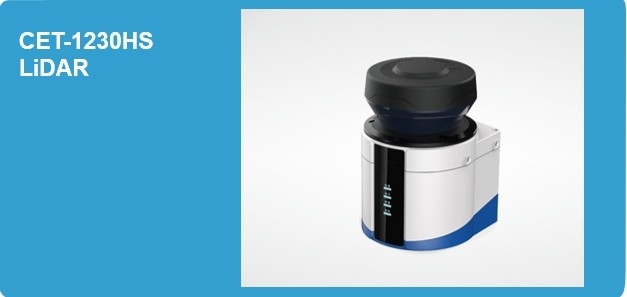

CET-1230HS LiDAR Sensor For Vehicle Profile Detection

Name: CET-1230HS LiDAR Sensor For Vehicle Profile Detection
Brand: Chengdu Enviko Technology Co.,Ltd
SKU: CET-1230HS
Availability: InStock

Brand Name:	Enviko
Model Number:	CET-1230HS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Highlight:

CET-1230HS LiDAR Sensor

Vehicle Profile Detection LiDAR Sensor

Vehicle 3d lidar sensor

Product Description

Enviko CET-1230HS LiDAR: Revolutionizing Dynamic Vehicle Contour Detection for Weigh-in-Motion Systems

CET-1230HS LiDAR Sensor For Vehicle Profile Detection 0

Precision in Motion: Enviko’s Solution for Vehicle Profile Monitoring

Enviko, a leader in intelligent transportation technology, presents the CET-1230HS LiDAR—a cutting-edge system designed to transform dynamic vehicle contour detection. Engineered for seamless integration with Weigh-in-Motion (WIM) systems, this advanced sensor accurately measures the length, width, and height of moving vehicles, enabling efficient management of oversize vehicles and enhancing road safety. Whether deployed at highway checkpoints, logistics hubs, or toll stations, the CET-1230HS delivers real-time vehicle dimension data with unmatched precision.

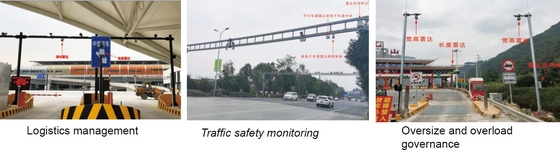

Applications: Where Vehicle Contour Detection Matters

CET-1230HS LiDAR Sensor For Vehicle Profile Detection 1

Oversize Vehicle Enforcement
At highway entry points and weigh stations, the CET-1230HS identifies oversize vehicles by measuring their dimensions against regulatory limits. This proactive approach prevents overwidth or overheight vehicles from entering roads, reducing the risk of bridge damage, tunnel collisions, and traffic disruptions.
Logistics and Fleet Management
Logistics hubs use the system to verify cargo dimensions for compliance with transport regulations. By automating vehicle profile checks, operators minimize loading errors, optimize route planning, and ensure legal compliance, avoiding fines and operational delays.
Intelligent Transportation Systems (ITS)
Integrated with WIM systems, the CET-1230HS enhances traffic flow analysis by providing real-time data on vehicle types and sizes. This information supports infrastructure planning, toll pricing strategies, and emergency response logistics.

Measure :length/ width/ height

CET-1230HS LiDAR Sensor For Vehicle Profile Detection 2

Item	Measurement Range	Measurement Error
Speed (km/h)	0~40
Length (mm)	1~33,000	±1% or ±20 mm
Width (mm)	1~4,500	±1% or ±20 mm
Height (mm)	1~5,500	±1% or ±20 mm
Speed (km/h)	0~100
Length (mm)	1~33,000	≤±300mm
Width (mm)	1~4,500	≤±100mm
Height (mm)	1~5,500	≤±50mm

Why Choose Enviko for Vehicle Profile Monitoring?

Enviko’s CET-1230HS combines technical excellence with practical design, offering:

Reliability: 24V DC operation, low power consumption, and long-term durability in extreme environments.
Scalability: Customizable settings and open protocols for seamless integration with diverse ITS ecosystems.
Support: Comprehensive technical assistance and after-sales service to ensure optimal performance.

Specification
model	CET-1230HS
Laser Characteristics	Class 1 laser product, Eye safety (IEC 60825-1)
Laser Light Source	905nm
Measurement Frequency	144KHz
Measurement Distance	30m@10%,80m@90%
Scanning Frequency	50/100Hz
Detection Angle	270°
Angular Resolution	0.125/0.25°
Measurement Accuracy	±30mm
Working Voltage	2A@DC24V±4V
Power Consumption	Typical ≤15W; heating ≤55W;
Interface Type	power: 5-core <run, heating>; net: 4-core; IO1: 8-core <YX, RS232RS485, sync>; IO2: 8-core <YK>
Number of Interfaces	power: 1; net: 1; YX: 2; YK: 2; sync: 1; RS232/RS485: 1 (option)
Environmental Parameters	Temp:-55°C~+70°C, Humi:0%~95%
Dimensions	130mmx102mmx157mm
Anti-glare Rating	80000lux
Protection Level	IP67
