EN-9120T LiDAR for Mining & Logistics Management

Name: EN-9120T LiDAR for Mining & Logistics Management
Brand: Chengdu Enviko Technology Co.,Ltd
Availability: InStock

Brand Name:	Enviko
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Highlight:

EN-9120T single line lidar

905nm laser navigation LiDAR

905nm single line lidar

Product Description

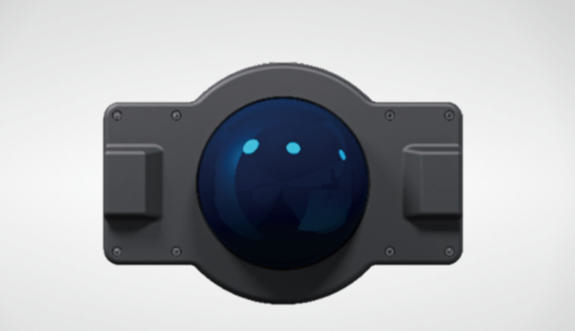

EN-9120T LiDAR for Mining & Logistics Management 0

The EN-91 series lidar is a navigation-type single-line lidar that supports indoor and outdoor applications. Three-dimensional scanning type, line scanning frequency up to 50HZ, line scanning angle resolution minimum 0.167°. The radar adopts industrial-grade protection design, which can meet the strict requirements for accuracy and reliability in the mining and metallurgical industry - obstacle avoidance, anti-collision and other applications.

Parameter Model	EN-9120T
Laser characteristics	905nm, Class 1 laser product, eye safe (IEC 60825-1)
Measuring frequency	108KHz
Working range	20m
Measuring distance	20m@10%
Scanning frequency	Line scan frequency: 50Hz; field scan frequency: 0.5Hz <field/2s>
Detection angle	Three-dimensional scanning; line scan field of view: 155°, field scan field of view: 55°
Angular resolution	Line scanning angular resolution: 0.167; Field scanning angular resolution: 0.55 <field/2s>
Repeat accuracy	±30mm
Machine power consumption	Typical ≤20W
Current and voltage	DC24V;3A@DC24V radar side
Interface type	Power supply: 4-core aviation socket <work>; communication: 8-core aviation socket <network, debugging>; 10:12 aviation socket <letter, remote control>
Interface type	Power supply, network, remote control and remote signaling
Number of interfaces	Power supply: 1 channel; Network: 1 channel; YX: 2 channels; YK: 2 channels
Environmental parameters	Working temperature: -20°C~+70C; Working humidity: 0%~95%
Overall dimensions	330mmx220mmx188mm
Light resistance level	80000lux
Protection level	IP66/67

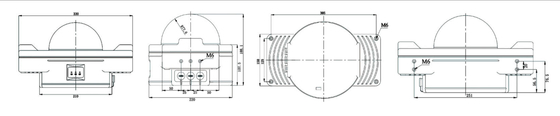

Product dimensions

EN-9120T LiDAR for Mining & Logistics Management 1
