EN-70 LiDAR for Mining & Logistics Management

Brand Name:	Enviko
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Highlight:

measurement type single line lidar

1550nm single line lidar

1550nm laser lidar

Product Description

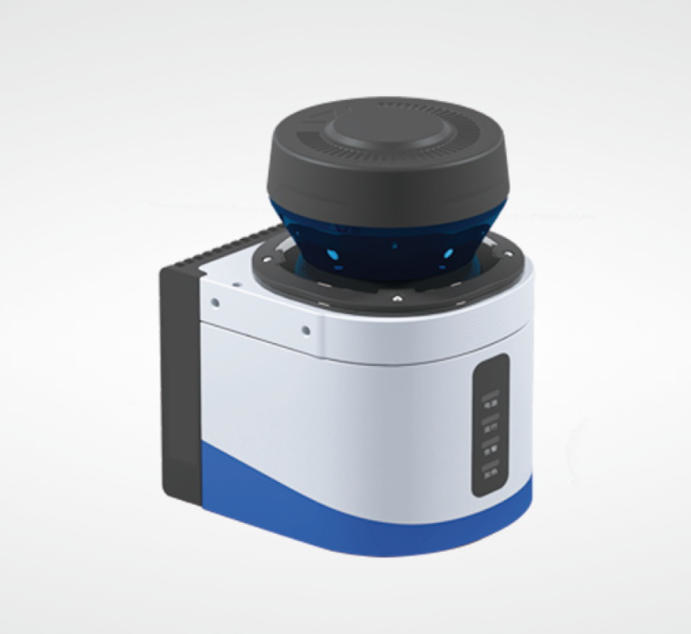

EN-70 LiDAR for Mining & Logistics Management 0

The EN-70 series lidar is a measurement-type single-line lidar that supports indoor and outdoor applications. It has super measurement capabilities. For targets with 10% reflectivity, its effective measurement distance can reach up to 200 meters. The maximum scanning angle range is 270°, the scanning frequency is higher Max 50Hz, and the angle resolution is 0.016° interlaced. The radar adopts industrial-grade protection design, which can meet the requirements of strict reliability and high performance in applications such as positioning, automatic palletizing, and three-dimensional point cloud in the mining industry.

Parameter model	EN-70130NT	EN-70200NT
Laser characteristics	1550nm, Class 1 laser product, eye safe (IEC 60825-1)
Measurement frequency	144KHz	144KHz
Working range	5-130m	5-200m
Measurement distance	70m@2%,130m@10%	100m@2%,200m@10%
Scanning frequency	12.5/25/50Hz	12.5/25/50Hz
Detection angle	270°	270°
Angular resolution	0.03125/0.0625/0.125°,0.016interlaced	0.03125/0.0625/0.125°,0.016°interlaced
Statistical error	5-130m,±5cm	5-120m,±5cm;120-200m,±10cm
Overall machine power consumption	Typical ≤40W, heating ≤80W
Current and voltage	Voltage range: DC24V4V, starting current: 2A@DC24V (radar side)
Interface type	Power supply: 5-core aviation socket <work, heating>, network: 4-core aviation socket, 10-pin: 8-core aviation socket <remote control>, communication: 8-core aviation socket <letter, RS485/RS232. Same>
Interface type	Power supply, network, remote control and signaling (thousands of contacts), synchronization, R232/RS485 (optional)
Number of interfaces	Power supply: 1 channel; Network: 1 channel, YX: 2 channels, YK: 2 channels; Synchronization: 1 channel; RS232/RS485 interface: 1 channel (optional)
Environmental parameters	Working temperature: -30°C~+50C; Working humidity: 0%~95%
Overall dimensions	Rear outlet:140mmx158mmx206mm
Light resistance	80000lux
level Protection level	IP65/1P67/68

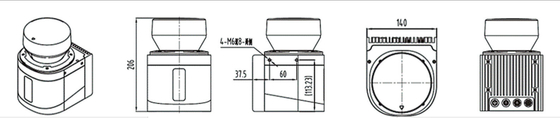

Product dimensions

EN-70 LiDAR for Mining & Logistics Management 1
