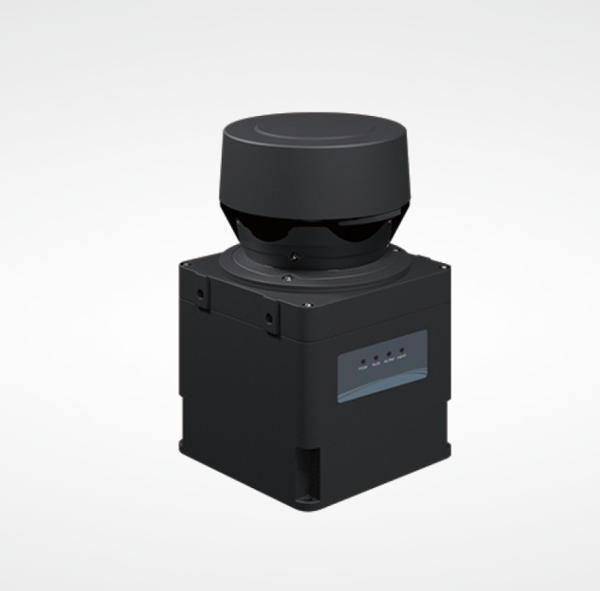

EN-K LiDAR for Mining & Logistics Management

Parameter model

EN-K30HFAT

EN-K40HET

EN-K60CMT

EN-K100CMT

Laser characteristics

905nm, Class 1 laser product, eye safe (IEC 60825-1)

Laser light source

905nm

905nm

905nm

905nm

Measuring frequency

144KHz

72KHz

36KHz

36KHz

Measuring distance

30m@10%,45m@90%

40m@10%,90m@90%

60m@10%,100m@90%

100m@10%,250m@90%

Scanning frequency

25/50Hz

12.5/25/50/100Hz

12.5/25/50Hz

12.5/25/50Hz

Detection angle

270°

270°

270°

270°

Angular resolution

0.0625/0.125

0.0625/0.125/0.25/0.5

0.125/0.25/0.5

0.125/0.25/0.5

 Measuring accuracy

±30mm

±30mm

±40mm

±50mm

Machine power consumption

Typical ≤15W; heating ≤55W

Typical ≤20W; heating ≤60W

Typical ≤15W; heating ≤55W

Typical s15W; heating ≤55W

Working voltage

Voltage range: DC9~36V, recommended voltage: DC24V/DC12V

Starting current

2A@DC24V radar side; 2.5A@DC12V radar side

Interface type

Power supply: 6-core aviation socket <work, heating>; communication: 7-core aviation socket <network, RS232/RS485>; 10: 9-core aviation socket <remote signaling, remote control, synchronization>

Number of interfaces

Power supply: 1 working channel/1 heating channel; Network: 1 channel; Remote signaling (X): 2 channels (K40HE: 0 channels), remote control YK): 2 channels (K40HE: 3 channels); Synchronization: 1 channel, RS232/ RS485: 1 channel optional)

Environmental parameters

Wide temperature: -55°C~+80°C;

·Operating temperature: -55°C~+70C; Working humidity: 0%~95%

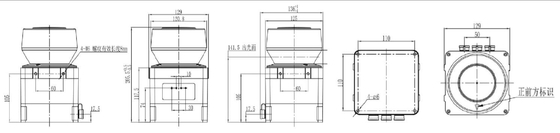

Overall dimensions

Rear outlet: 136mmx129mmx205.5mm; Bottom outlet: 125mmx129mmx217mm

Light resistance level

80000lux

Protection level

IP67/68
