ENA-T/MT 3D LiDAR Scanner for Mining & Logistics Management

Brand Name:	Enviko
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Highlight:

ENA-T/MT 3D LiDAR scanner

1550nm three dimensional laser scanner

1550nm 3D LiDAR scanner

Product Description

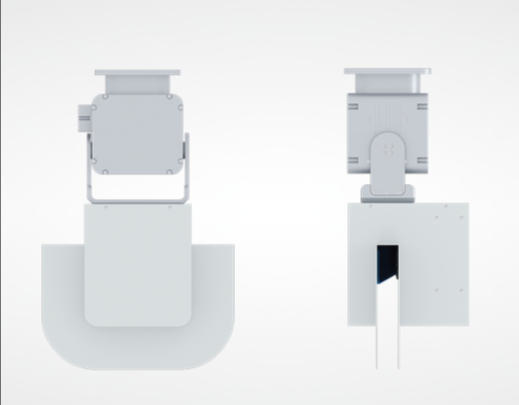

ENA-T/MT 3D LiDAR Scanner for Mining & Logistics Management 0

The ENA-T series three-dimensional table laser scanner is a measurement product developed by our company for plate material applications where the measured target position is relatively fixed. The product adopts the integrated hoisting design of lidar and swing table to achieve 180° horizontal swing. During the 180° horizontal swing process, the lidar scans the material pile below in real time to form three-dimensional point cloud data. The three-dimensional point cloud data is obtained through the combined use of multiple three-dimensional turntable laser scanners. After splicing, the stacking volume, height and other results are output. It has the characteristics of light weight, flexible deployment and high cost performance.

Parameter	Specifications
Model	ENA-T70130/MT	ENA-T70200/MT
Laser wavelength	1550nm	1550nm
Measurement frequency	144K	144K
Scan angle	270°	270°
Scan frequency	12.5/25/50Hz	12.5/25/50Hz
Angle resolution	0.03125/0.0625/0.125	0.03125/0.0625/0.125
Effective measurement distance	5~130m@10%	5~200m@10%
Laser divergence angle	≤2mrad	≤2mrad
Measurement error	±50mm	±50mm
Statistical error	±50mm	±50mm
Machine power consumption	Typica≤30W	Typica≤30W
Swing speed	0.1°~15°/S (configurable)
Swing angle	180°
Positioning accuracy	±0.1°
Repeat accuracy	±0.1°
Power supply voltage	DC24V
Working environment	-30°C~+60°, 90%±3%, non-condensing
Machine weight	8.4KG
Protection level	IP65
Embedded software	Receive radar data, receive platform data, control the turntable, and detect radar status, standard configuration
3D point cloud conversion, output point cloud data, optional
