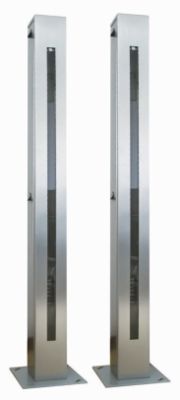

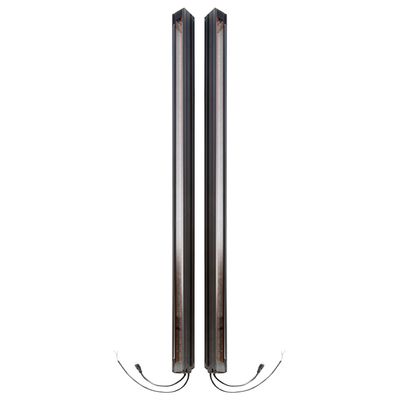

Infrared Light Curtain Vehicle Barrier with RS485-RS232 Communication, 100% Accuracy Rate, and Intelligent Heating Function

Name: Infrared Light Curtain Vehicle Barrier with RS485-RS232 Communication, 100% Accuracy Rate, and Intelligent Heating Function
Brand: Chengdu Enviko Technology Co.,Ltd
SKU: ELHNC1200
Availability: InStock

Brand Name:	CET
Model Number:	ELHNC1200

Detail Information

Product Description

Detail Information

Highlight:

RS485 vehicle barrier emitter

infrared light curtain receiver

100% accurate vehicle separation

Product Description

Infrared Light Curtain Vehicle Barrier with RS485-RS232 Communication, 100% Accuracy Rate, and Intelligent Heating Function

Advanced photoelectric vehicle separation system featuring reliable performance with up to 100% accuracy in optimal conditions and no less than 99% accuracy in adverse weather conditions including rain, snow, and fog.

ELHNC1200 Technical Specifications

Model	Test Distance	Minimum Detectable	Optical Axes	Beam Spacing	Height	Response Time	Size
ELHNC1200	18m	25mm	48	25mm	1200mm	15ms	1280mm

Key Features

Compact design with programmable functionality
High-speed operation with exceptional measurement accuracy
Strong anti-interference capability for reliable performance
Intelligent heating system with automatic defrosting activation
Optical communication technology reducing wiring requirements
Synchronized scanning between emitter and receiver
Four-level beam strength indication for easy installation and maintenance
RS485 serial communication interface
Comprehensive self-diagnostic function for automatic failure detection
Operational capability during failure conditions with alarm outputs
Selectable conventional and cross-scanning (1-to-3) modes
LED status indicators for operation and heating functions

The system's intelligent heating function automatically activates built-in heated glass defrosting when penetration decreases, ensuring consistent performance in varying environmental conditions.
