CET8311 Piezo Traffic Sensor for Weigh In Motion and Bridge Health Monitoring

Name: CET8311 Piezo Traffic Sensor for Weigh In Motion and Bridge Health Monitoring
Brand: Chengdu Enviko Technology Co.,Ltd
SKU: CET8311
Availability: InStock

Brand Name:	Enviko
Model Number:	CET8311
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Installation Manual_CET8311...or.pdf

Packaging Details:

Package dimensions: 54×54×15 cm, 4 sets/box

Highlight:

CET8311 Piezoelectric Traffic Sensor

Vehicle Speed WIM Sensor

Piezoelectric Traffic Sensor WIM

Product Description

CET8311 Piezo Traffic Sensor

The CET8311 Piezo Traffic Sensor is an advanced sensor leveraging the piezoelectric effect to generate electrical signals by detecting pressure changes from vehicles. It enables precise monitoring of axle count, vehicle speed, classification, and dynamic weighing. With features such as high sensitivity, durability, cost-effectiveness, and easy installation, it is widely used in highway and urban traffic management, providing critical data support for intelligent transportation systems.

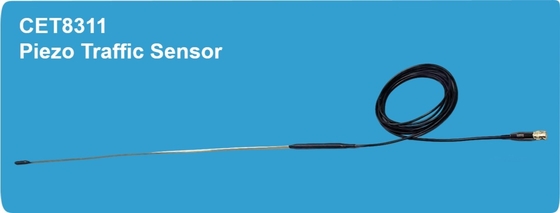

CET8311 Piezo Traffic Sensor for Weigh In Motion and Bridge Health Monitoring 1

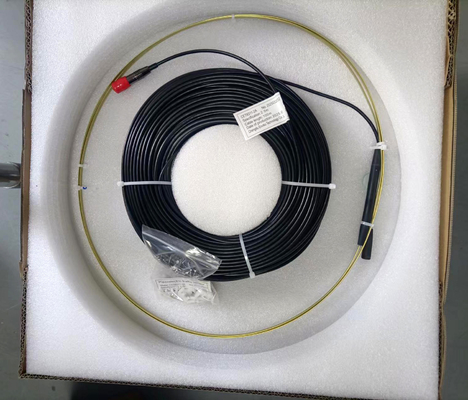

CET8311 Piezo Traffic Sensor for Weigh In Motion and Bridge Health Monitoring 2

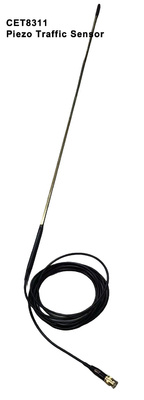

CET8311 Piezo Traffic Sensor for Weigh In Motion and Bridge Health Monitoring 3

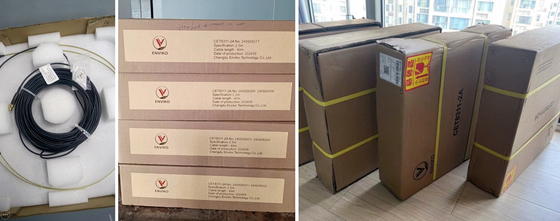

CET8311 Piezo Traffic Sensor for Weigh In Motion and Bridge Health Monitoring 4

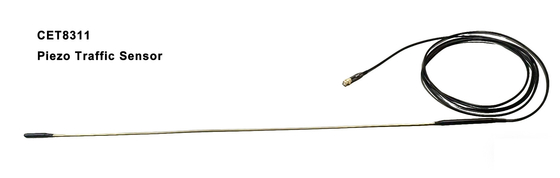

CET8311 Piezo Traffic Sensor for Weigh In Motion and Bridge Health Monitoring 5

Working Principle

The sensor uses the longitudinal piezoelectric effect of polymer materials to generate an electric charge when impacted. It converts the vehicle tire’s weight into proportional electrical signals, enabling the detection of wheel load, axle load, and total vehicle weight.

Two types for CET8311 Piezo Traffic Sensor:

•Class I (Weigh In Motion, WIM): Used for dynamic weighing applications, with an output consistency of ±7%, suitable for applications requiring high-precision weight data.

•Class II (Classification): Used for vehicle counting, classification, and speed detection, with an output consistency of ±20%. It is more economical and suitable for high-traffic management applications.

The Main Parameters of CET8311 Piezo Traffic Sensor

Output Uniformity	±20% for Class II (Classification) ±7% for Class I (Weigh in Motion)
Operating Temperature Range	-40℃～85℃
Temperature Sensitivity	0.2%/℃
Typical Output Level	At 25ºC, using 250mm*6.3mm rubber head, pressing 500KG force, peak output 11-13V
Piezoelectric Coefficient	22 pC/N
Center Core	16 gauge, flat, braided, silver plated copper wire
Piezoelectric Material	Spiral-wrapped PVDF Piezoelectric film
Outer Sheath	0.4mm thick brass
Passive Signal Cable	RG58A/U, using high-density polyethylene sheath, can be directly buried; outer diameter 4mm, rated capacitance 132pF/m
Product Life	>40 to 100 million axle times
Capacitance	3.3m,40m cable,18.5nF
Insulation Resistance	DC 500V >2,000MΩ
Packaging	2 or 4 pcs per box (540×540×145mm paper box)
Installation Brackets	Includes brackets. One bracket per 150mm
Sensor Dimensions	1.6mm*6.3mm, ±1.5%
Installation Slot Size	20mm×25mm
