Bridge Health Monitoring

CETSV08/16 Static Vibrating String Acquisition for Bridge Static Monitoring System

Name: CETSV08/16 Static Vibrating String Acquisition for Bridge Static Monitoring System
Brand: Chengdu Enviko Technology Co.,Ltd
SKU: CET-SV08/16
Availability: InStock

Brand Name:	Enviko
Model Number:	CET-SV08/16
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Highlight:

Bridge Static Vibrating String Collector

8 channel Static Vibrating String Collector

16 channel Static Vibrating String Collector

Product Description

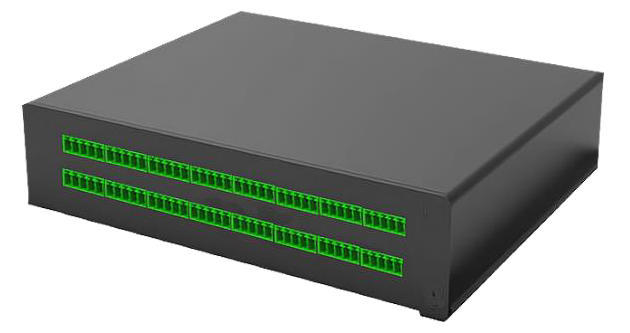

Static Vibrating String Acquisition

CET-SV08/16

CETSV08/16 Static Vibrating String Acquisition for Bridge Static Monitoring System 0

CETSV08/16 Static Vibrating String Acquisition for Bridge Static Monitoring System 1

CETSV08/16 Static Vibrating String Acquisition for Bridge Static Monitoring System 2

The Static Vibrating String Collector is mainly used to simultaneously collect the frequency signals and temperature data of 8-channel/16-channel vibrating string sensors. It is widely applied to monitor physical quantities such as stress, strain, and deformation in structural engineering like bridges, tunnels, and foundation pits. The 16-channel collector is suitable for large-scale monitoring scenarios.

High Precision and Stability

•High measurement precision, with frequency acquisition precision up to ±0.1Hz. It has an automatic temperature compensation function and can simultaneously collect data from up to 16 channels.

•Strong Anti-Interference Ability

•Adopts a metal shell with optoelectronic isolation design, and the protection class reaches IP66.

•Convenient Installation

•Small size and light weight, easy to carry and install.

•Data Storage and Transmission

•Supports offline data storage and automatically uploads data after network recovery.
