CET-SD2200 Wireless Static Digital Acquisition for Bridge Health Monitoring System

Name: CET-SD2200 Wireless Static Digital Acquisition for Bridge Health Monitoring System
Brand: Chengdu Enviko Technology Co.,Ltd
SKU: CET-SD2200
Availability: InStock

Brand Name:	Enviko
Model Number:	CET-SD2200
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Highlight:

RS485 Wireless Static Digital Collector

Static Bridge Health Monitoring

Bridge Static Monitoring System Digital Collector

Product Description

Wireless Static Digital Acquisition

CET-SD2200

CET-SD2200 Wireless Static Digital Acquisition for Bridge Health Monitoring System 0

CET-SD2200 Wireless Static Digital Acquisition for Bridge Health Monitoring System 1

CET-SD2200 Wireless Static Digital Acquisition for Bridge Health Monitoring System 2

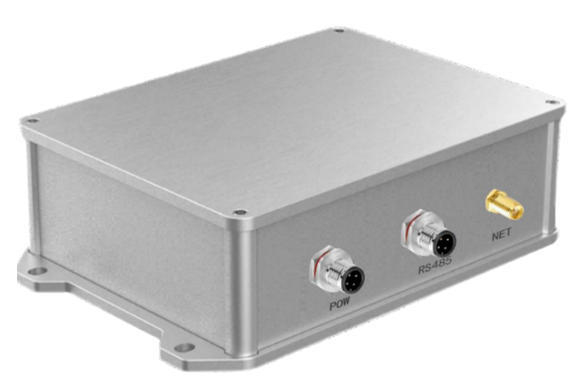

The Wireless Static Digital Collector is an intelligent acquisition device designed for long-term outdoor monitoring, suitable for connecting digital sensors with RS485 interfaces. It adopts a low-power design, solar power supply, and 4G network transmission, and is widely used in structural health monitoring scenarios such as bridges, tunnels, and slopes, as well as in environmental monitoring and geological disaster early warning fields.

Low-Power Design and Solar Power Supply

•Equipped with a solar panel, adopting an ultra-low-power design, with a sleep current as low as μA level.

Wireless Communication and 4G Data Upload

Built-in 4G communication module supporting all network standards, enabling real-time data upload to cloud platforms or remote servers while ensuring stability and security of data transmission.

Efficient Data Acquisition and Processing

•Supports timed polling of data from RS485 interface sensors, and the acquisition frequency can be set to meet different monitoring needs. It provides large-capacity data storage and supports the function of continuing to upload data after network disconnection to ensure data integrity.
