CET2104/2204 Wireless Static Signal Acquisition For Bridge Static Monitoring System

Name: CET2104/2204 Wireless Static Signal Acquisition For Bridge Static Monitoring System
Brand: Chengdu Enviko Technology Co.,Ltd
SKU: CET-2104/2204
Availability: InStock

Brand Name:	Enviko
Model Number:	CET-2104/2204
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Highlight:

Bridge Wireless Static Signal Collector

Bridge Static Monitoring Signal Collector

multifunctional Wireless Static Signal Collector

Product Description

Wireless Static Signal Acquisition

CET2104/2204

CET2104/2204 Wireless Static Signal Acquisition For Bridge Static Monitoring System 0

CET2104/2204 Wireless Static Signal Acquisition For Bridge Static Monitoring System 1

CET2104/2204 Wireless Static Signal Acquisition For Bridge Static Monitoring System 2

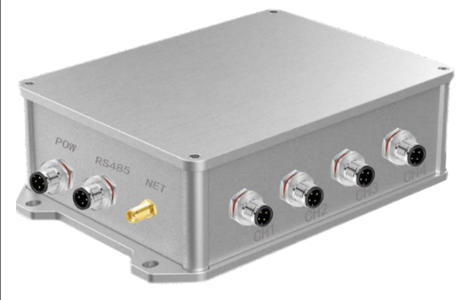

The Wireless Static Signal Collector is a high-performance multifunctional acquisition device that integrates the functions of digital signal and analog signal acquisition. The device supports one RS485 interface and has 4 analog signal input channels, suitable for long-term outdoor monitoring scenarios such as bridges, tunnels, slopes, and geological disaster monitoring.

Multifunctional Integration

•Integrates the acquisition functions of digital and analog sensors, and can be flexibly configured for vibrating string, voltage, and current signals.

Low-Power and Solar Power Supply

•Adopts an ultra-low-power design, with a sleep current as low as μA level and an average working current of only about 100mA.

Efficient Data Acquisition and Transmission

•Supports timed polling of sensor data, and the acquisition cycle can be flexibly set. It is built-in with a 4G all-network communication module, supporting real-time data upload to the cloud platform or remote server.
