Home Products

Bridge Health Monitoring

CET-DM11 Visual Deflection Meter for Bridge Health Monitoring System

Name: CET-DM11 Visual Deflection Meter for Bridge Health Monitoring System
Brand: Chengdu Enviko Technology Co.,Ltd
SKU: CET-DM11
Availability: InStock

Brand Name:	Enviko
Model Number:	CET-DM11
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Highlight:

Visual Deflection Meter

0.5m bridge health monitoring system

400m Bridge Health Monitoring

Product Description

Visual Deflection Meter

CET-DM11

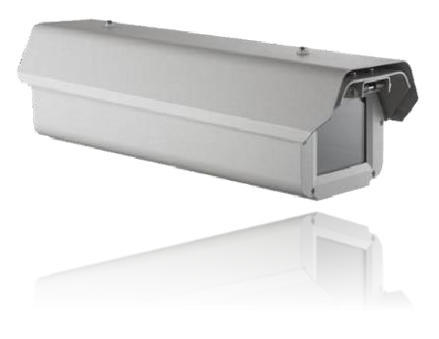

CET-DM11 Visual Deflection Meter for Bridge Health Monitoring System 0

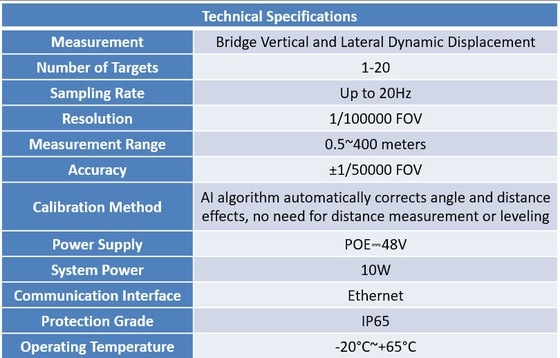

CET-DM11 Visual Deflection Meter for Bridge Health Monitoring System 1

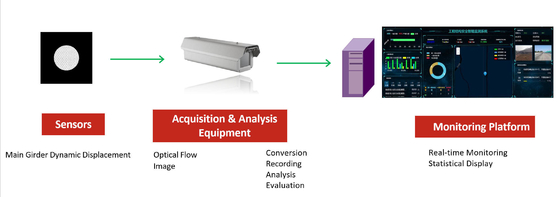

CET-DM11 Visual Deflection Meter for Bridge Health Monitoring System 2

This system utilizes high-definition camera lenses to capture infrared images from multiple targets in the target area. Employing ultra-sensitive optical flow algorithms, it performs real-time calculations of target dynamic displacements, achieving high-frequency and high-precision bridge deflection tracking.

➢ High Precision Implements ultra-sensitive optical flow methods and high-definition cameras to achieve displacement tracking precision of 0.1mm.

➢ High Frequency Utilizes high-frequency cameras, enabling dynamic deflection data acquisition at rates up to 50Hz.

➢ Wide Application Range Equipped with various focal length lenses, capable of tracking deflection of targets at distances from 5 to 300 meters.

➢ Passive Targets Employs passive reflective targets, resulting in low system failure rates and power consumption. Capable of simultaneously capturing images from 20 targets.

➢ Miniaturized Convenient Design Features compact design compatible with both mains power and solar power supply for easy installation and deployment.
