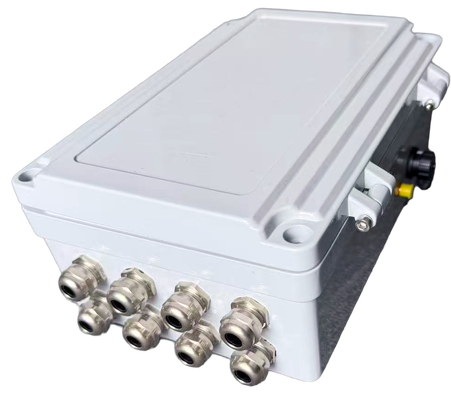

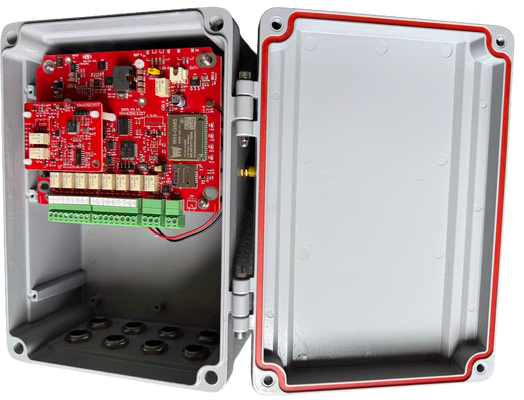

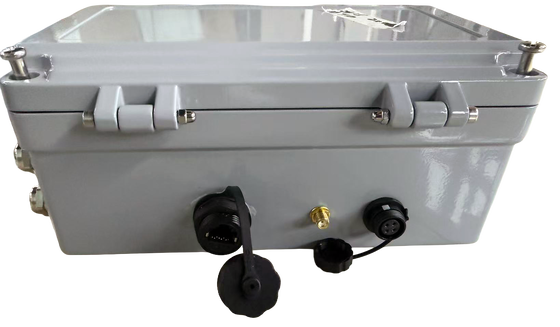

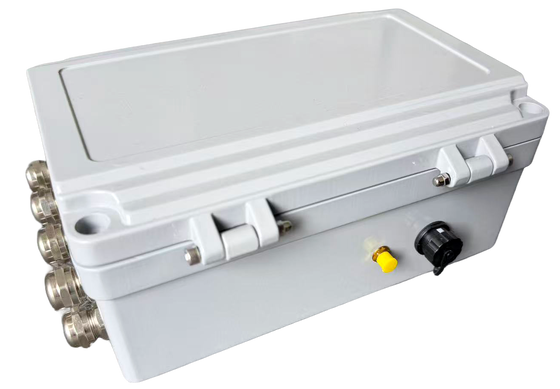

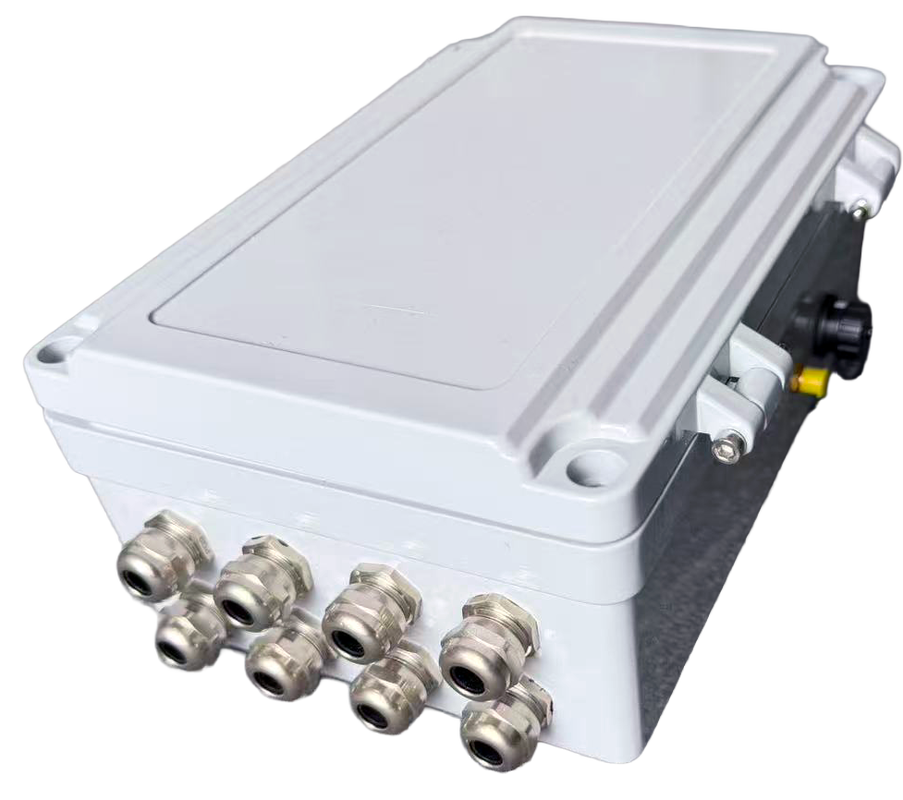

Wireless Data Acquisition Unit

Name: Wireless Data Acquisition Unit
Brand: Chengdu Enviko Technology Co.,Ltd
SKU: CET-20L-CAT1
Price: Negotiable USD
Availability: InStock

Brand Name:	Enviko
Model Number:	CET-20L-CAT1

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Description

Overview

The Enviko CET-20L-CAT1 is a multi-channel intelligent data acquisition unit for structural health and engineering safety monitoring at remote sites. It reads vibrating wire, resistance, voltage, current, thermocouple and RS485 sensors on up to 64 channels, sends data over a CAT1 (4G LTE Category 1) wireless link, and runs on a built-in rechargeable battery with solar charging. With a standby current below 5 μA, it is designed for long-term unattended monitoring of bridges, slopes, tunnels, dams and other infrastructure.

Key Features

Multi-sensor compatibility: vibrating wire, resistance, voltage, current, thermocouple and RS485 sensors
Flexible channel configuration: 8, 16, 32, 48 or 64 channels
CAT1 (4G LTE) wireless communication for remote automated monitoring and distributed field deployment
Ultra-low power: standby current below 5 μA, for rechargeable battery and solar-powered operation
Automatic data recovery: data is stored locally during communication interruptions and retransmitted automatically once the network is restored
Local and remote parameter configuration
Wide operating temperature range: −30 °C to +80 °C

Applications

Bridge structural health monitoring
Slope and landslide monitoring
Tunnel and dam safety monitoring
Long-term unattended sites without mains power or wired networks
Distributed monitoring points across large infrastructure projects

Specifications

Parameter	Specification
Channels	8 / 16 / 32 / 48 / 64
Voltage input	±10 V
Current input	0–20 mA
Resistance input	0–5000 Ω
Vibrating wire input	500–5000 Hz
RS485	Supported
Voltage accuracy	±0.01%
Current accuracy	±0.02%
Vibrating wire accuracy	±0.02%
Communication	CAT1 (4G LTE Category 1)
Configuration	Local and remote
Power supply	Built-in rechargeable battery; solar charging supported
Standby current	< 5 μA
Operating temperature	−30 °C to +80 °C
