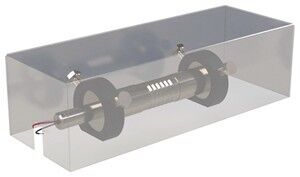

Vibrating Wire Steel Plate Strain Gauge

Name: Vibrating Wire Steel Plate Strain Gauge
Brand: Chengdu Enviko Technology Co.,Ltd
SKU: SK-SP
Price: Negotiable USD
Availability: InStock

Brand Name:	Enviko
Model Number:	SK-SP

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Description

Overview

The Enviko SK-SP vibrating wire steel plate strain gauge monitors strain on steel structures such as pipelines, steel frames, steel sheet piles and bridges. It is fixed to the steel with welded mounting bases and measures strain as the stress in the steel changes. A built-in temperature sensor records ambient temperature, and a smart chip can be added on request.

Key Features

Stainless steel construction with integrated bellows strain body
Resistant to rotation, bending, impact and drops
Follows the deformation of the steel without disturbing the original stress field
Sealed design with grounding for lightning protection
Optional carbon steel or stainless steel protective cover
Built-in temperature sensor; optional smart chip

Applications

Steel structures of hydraulic and other buildings
Pipelines
Steel sheet piles
Steel bridges

Specifications

Parameter	Specification
Models	SK-SP100 / SK-SP150 / SK-SP200 / SK-SP250
Measuring range	3000 με (±1500 με)
Gauge length	100 / 150 / 200 / 250 mm
Elastic modulus	150–300 MPa
Resolution	0.05% FS
Non-linearity	≤ 0.5% FS (linear); ≤ 0.1% FS (polynomial)
Accuracy	±0.1% FS
Temperature range	−20 °C to +80 °C
Temperature accuracy	±0.1 °C
Water pressure resistance	0.5 MPa (up to 3 MPa on custom models)
Insulation resistance	≥ 50 MΩ
