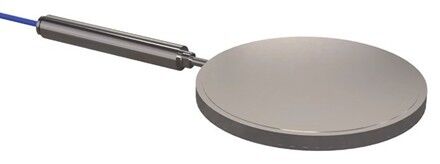

Vibrating Wire Earth Pressure Cell

Name: Vibrating Wire Earth Pressure Cell
Brand: Chengdu Enviko Technology Co.,Ltd
SKU: SK-EP
Price: Negotiable USD
Availability: InStock

Brand Name:	Enviko
Model Number:	SK-EP

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Description

Overview

The Enviko SK-EP vibrating wire earth pressure cell measures the contact pressure of fill against retaining walls, bedrock and other boundaries, as well as earth pressure within fill, embankments and soft foundations. An extra-thick back plate reduces the effect of point loads. A built-in temperature sensor records the temperature at the installation point.

Key Features

Ten ranges from 0.35 to 7 MPa
Extra-thick back plate to reduce point-load effects
High accuracy, high sensitivity and long-term stability
Excellent waterproofing for harsh environments
0.025% FS resolution and 30% overload capacity
Built-in temperature sensor

Applications

Contact pressure behind retaining walls
Pressure on bedrock and foundation surfaces
Earth pressure in fill and embankments
Soft foundations and dams

Specifications

Parameter	Specification
Models	SK-EP-0.35 / SK-EP-0.5 / SK-EP-0.7 / SK-EP-1 / SK-EP-2 / SK-EP-3 / SK-EP-4 / SK-EP-5 / SK-EP-6 / SK-EP-7
Rated range	0.35 / 0.5 / 0.7 / 1 / 2 / 3 / 4 / 5 / 6 / 7 MPa
Overload capacity	30%
Resolution	0.025% FS
Non-linearity	≤ 0.5% FS (linear); ≤ 0.1% FS (polynomial)
Accuracy	±0.1% FS
Temperature range	−20 °C to +80 °C
Temperature accuracy	±0.1 °C
Water pressure resistance	0.5 MPa (up to 3 MPa on custom models)
Insulation resistance	≥ 50 MΩ
Dimensions (L × W × H)	600 × 230 × 25 mm
