Multi-Channel Data Acquisition Unit

Name: Multi-Channel Data Acquisition Unit
Brand: Chengdu Enviko Technology Co.,Ltd
SKU: CET-XZ20
Price: Negotiable USD
Availability: InStock

Brand Name:	Enviko
Model Number:	CET-XZ20

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Description

Overview

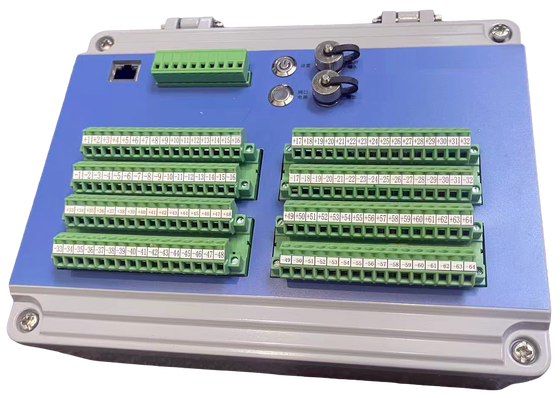

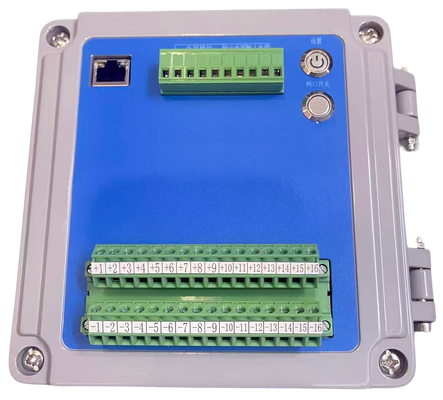

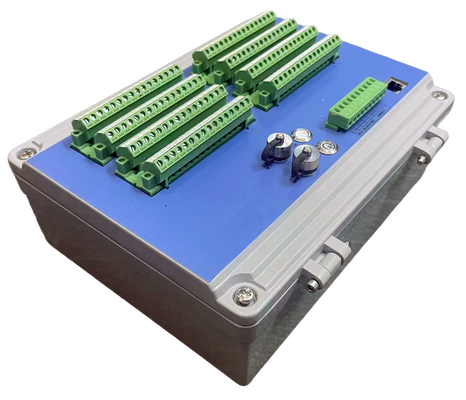

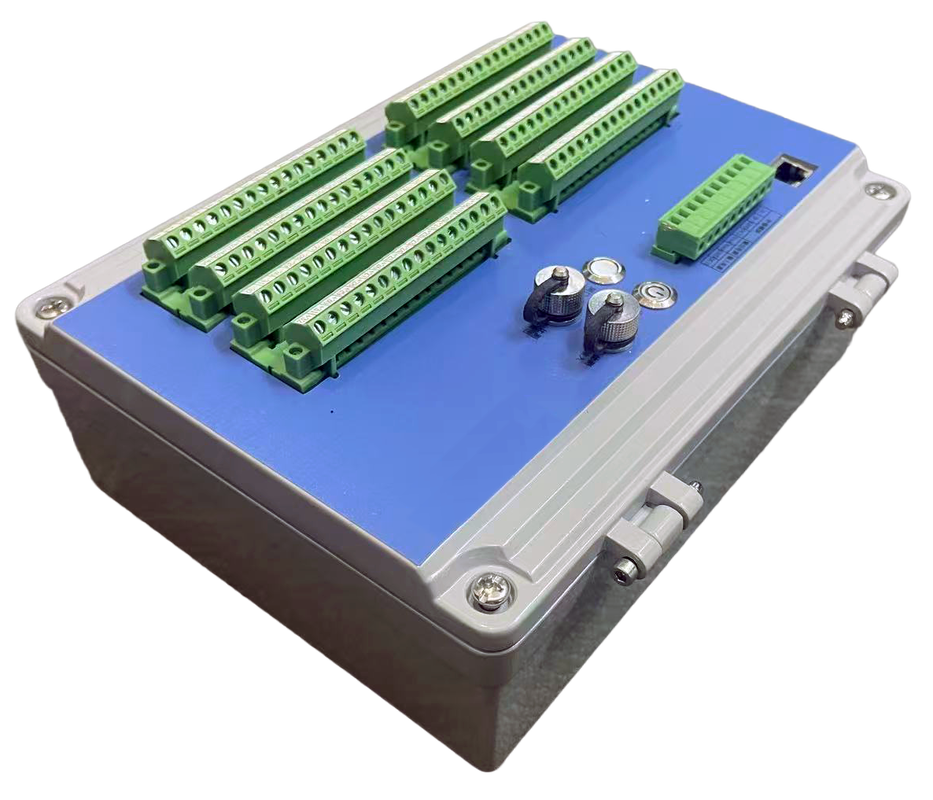

The Enviko CET-XZ20 is an intelligent multi-channel data acquisition unit for structural health monitoring and engineering safety monitoring. Its modular design accepts mixed sensor inputs on up to 64 physical channels, and it transmits data over both wired and wireless networks. It is built for centralised monitoring of bridges, tunnels, slopes, dams, foundation pits and other infrastructure, and its 5 μA standby current suits long-term field deployment.

Key Features

Multi-sensor compatibility: vibrating wire, resistance, voltage, current, thermocouple and RS485 sensors in one unit

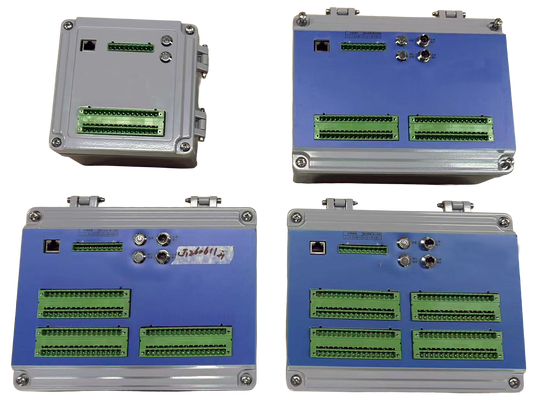

High-capacity acquisition: 16, 32 or 64 channels, up to 64 physical channels per unit
Wired and wireless communication: LAN, Internet, GPRS and CDMA
Automatic data recovery: data is stored locally during communication interruptions and retransmitted automatically once the network is restored
Ultra-low power consumption: standby current of about 5 μA
Local and remote parameter configuration
Wide operating temperature range: −30 °C to +80 °C
Compact IP64 enclosure for field installation

Applications

Bridge structural health monitoring
Tunnel and dam safety monitoring
Slope, landslide and geological hazard monitoring
Foundation pit and excavation monitoring
Centralised monitoring stations for other infrastructure

Specifications

Parameter	Specification
Channels	16 / 32 / 64
Voltage input	±10 V
Current input	0–20 mA
Resistance input	0–5000 Ω
Vibrating wire input	500–5000 Hz
RS485	Supported
Voltage accuracy	±0.01%
Current accuracy	±0.02%
Resistance accuracy	±0.05%
Vibrating wire accuracy	±0.02%
Sampling rate	> 1 channel/s (thermistor, voltage, current, thermocouple)
Vibrating wire sampling	> 1 channel per 2 s
Communication	LAN / Internet / GPRS / CDMA
Configuration	Local and remote
Standby current	About 5 μA
Power supply	+12 V DC
Operating temperature	−30 °C to +80 °C
Protection rating	IP64
Dimensions	251 × 192 × 90 mm

Standard Package

CET-XZ20 unit; 2-core power cable, RJ45 network cable and earth wire; user manual, certificate of conformity and warranty card.
